Horizontal Position
| Lower Length (A) | 47 in (119.4 cm) |
| Overall Length (A) + (C) | 117 in (297.2 cm) |
| Cart Length (C) | 70 in (177.8 cm) |
| Wheel Base (D) | 58 in (147.3 cm) |
| Width | 60 in (152.4 cm) |
| Height | 44 in (111.8 cm) |
| Weight | 2000 lbs (908 kg) |
| Drill Distance From Corner | 6 in (15.2 cm) |
| Drill Distance From Ground | 3 in (7.6 cm) |
| Drill Depth (std.) | 18 in (45.7 cm) |
| Drill Bit Diameter | 5/8 in to 2 1/2 in (15.9 mm to 63.5 mm) |
| Distance From Wheel to Center of Bit | N/A |

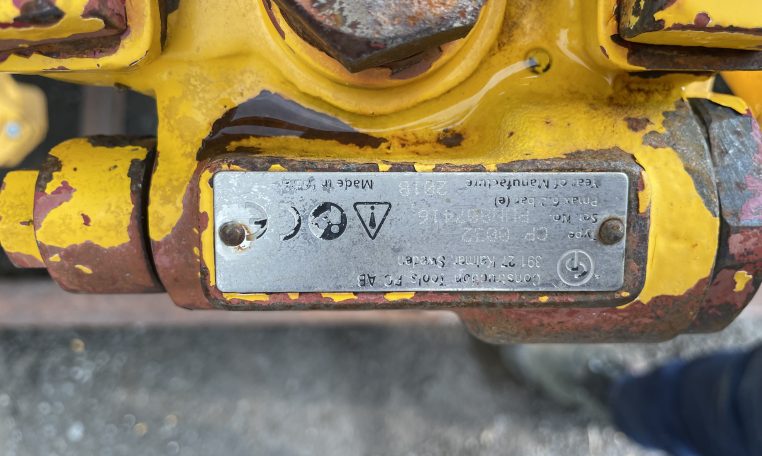

| Drill Motor (pneumatic) | CP 32A |
| Drill Motor Weight | 54 lbs (24.5 kg) |
| Chuck Size (std.) | 7/8 in x 3 1/4 in (22.2 mm x 82.6 mm) |
| Air Consumption (minimum) | 300 cfm (8.4 m 3 /min) |
| Operating Pressure | 90 psi (6.2 bar) |
| Impact (ft. lbs./blow) | 36 fpb (49 J) |
| Hammer Speed | 2200 bpm |
| Speed | 288 rpm |
