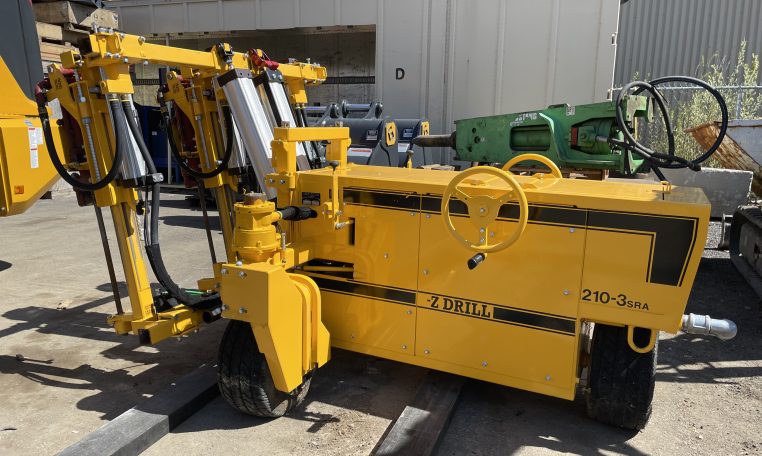

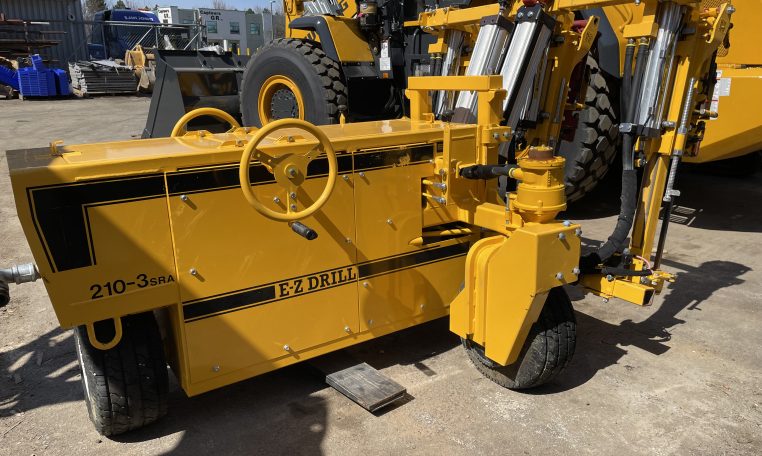

E-Z DRILL 210-3SRA SLAB RIDER CONCRETE CORE DRILL
$35,995
Plus Taxes & Licensing

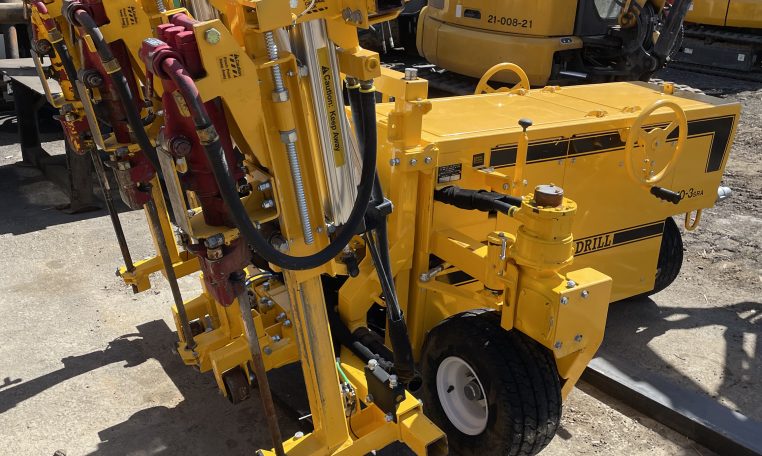

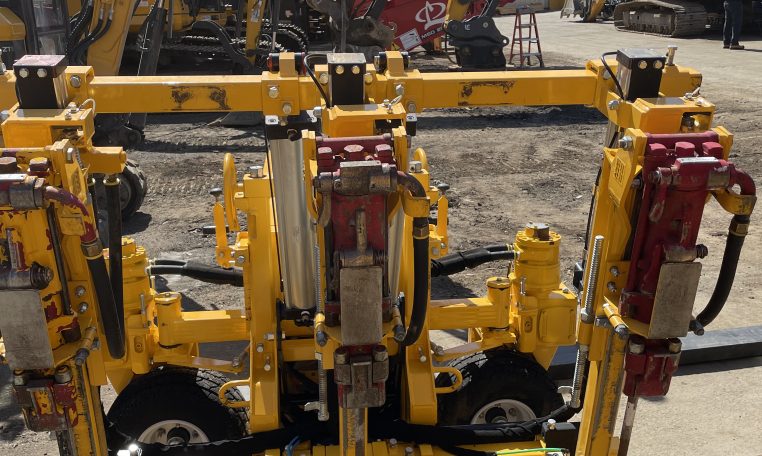

Drill up to three holes at once with the 210B-3 SRA slab rider. It features individually adjustable drill systems for drilling holes every 12 to 36 inches on center, and you can operate within a 4-foot patch and drill into slabs as thick as 24 inches. The 210B-3 SRA requires 300 cfm and is self-propelled for hassle-free maneuverability. To easily tow the air compressor, equip it with the optional tow bar package.
- There are no features available
Horizontal Position
bar
Lower Length (A) 47 in (119.4 cm)
Overall Length (A) + (C) 117 in (297.2 cm)
Cart Length (C) 70 in (177.8 cm)
Wheel Base (D) 58 in (147.3 cm)
Width 60 in (152.4 cm)
Height 44 in (111.8 cm)
Weight 2000 lbs (908 kg)
Drill Distance From Corner 6 in (15.2 cm)
Drill Distance From Ground 3 in (7.6 cm)
Drill Depth (std.) 18 in (45.7 cm)
Drill Bit Diameter 5/8 in to 2 1/2 in (15.9 mm to 63.5 mm)
Distance From Wheel to Center of Bit N/A
Drill Motor (pneumatic) CP 32A
Drill Motor Weight 54 lbs (24.5 kg)
Chuck Size (std.) 7/8 in x 3 1/4 in (22.2 mm x 82.6 mm)
Air Consumption (minimum) 300 cfm (8.4 m 3 /min)
Operating Pressure 90 psi (6.2 bar)
Impact (ft. lbs./blow) 36 fpb (49 J)
Hammer Speed 2200 bpm
Speed 288 rpm
